Tracked Mobile Jaw Crusher

Independent Pre-screening,Intelligent Feeding System,Wide Range of Discharge

Midas MJ series tracked mobile jaw crushing plant is equipped with European version C series crusher, super-large folding hopper, independent pre-screening system, and iron removal spray device. It is mainly used for primary crushing of materials, with large feed size and wide discharge range. It is suitable for all kinds of rocks. Convenient site to site transfer, and high crushing efficiency.

Application scenarios: primary crushing or primary crushing of medium and high hardness materials, mine ore crushing, construction waste recycling, construction aggregate production, highway/railway, road and bridge construction, etc.

Processing capacity:

80-570 （t/h）

Total system power:

106.3-149.8 （KW）

Category:

Tracked Mobile Crushing Plant

Get a quote

Service hotline:

+8615250961721

Product Details

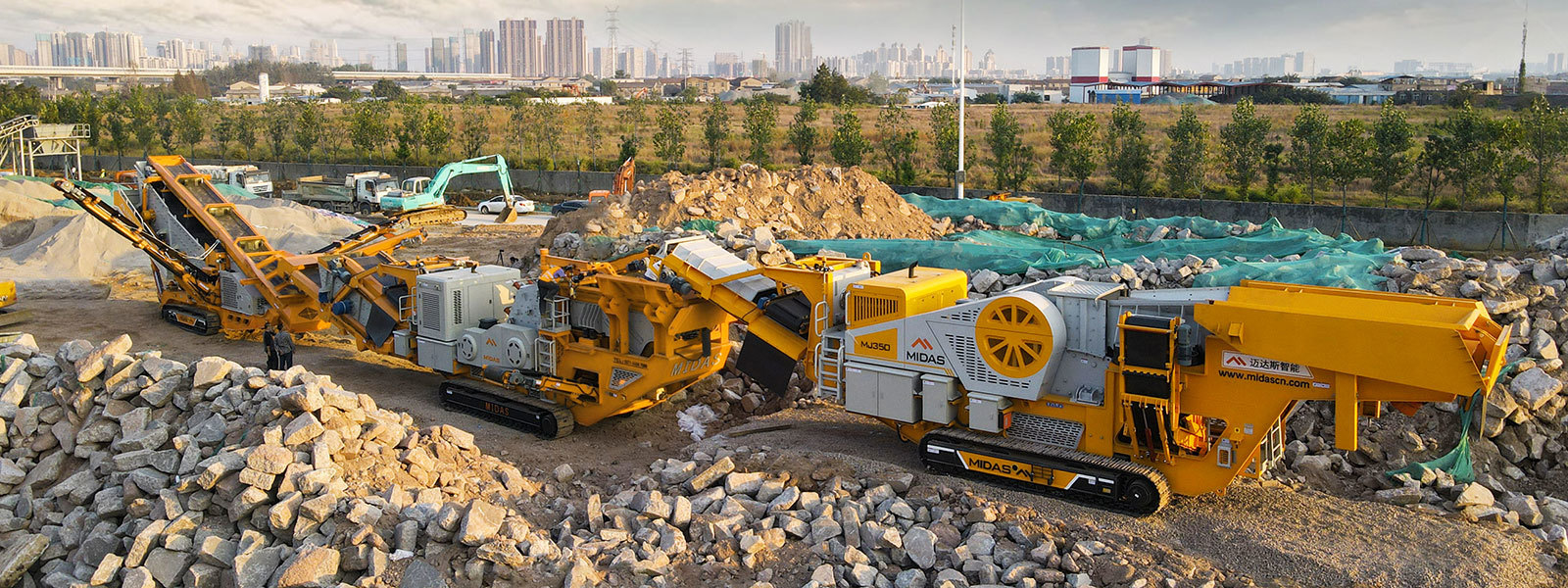

Tracked-Mobile-Jaw-Crusher01-06

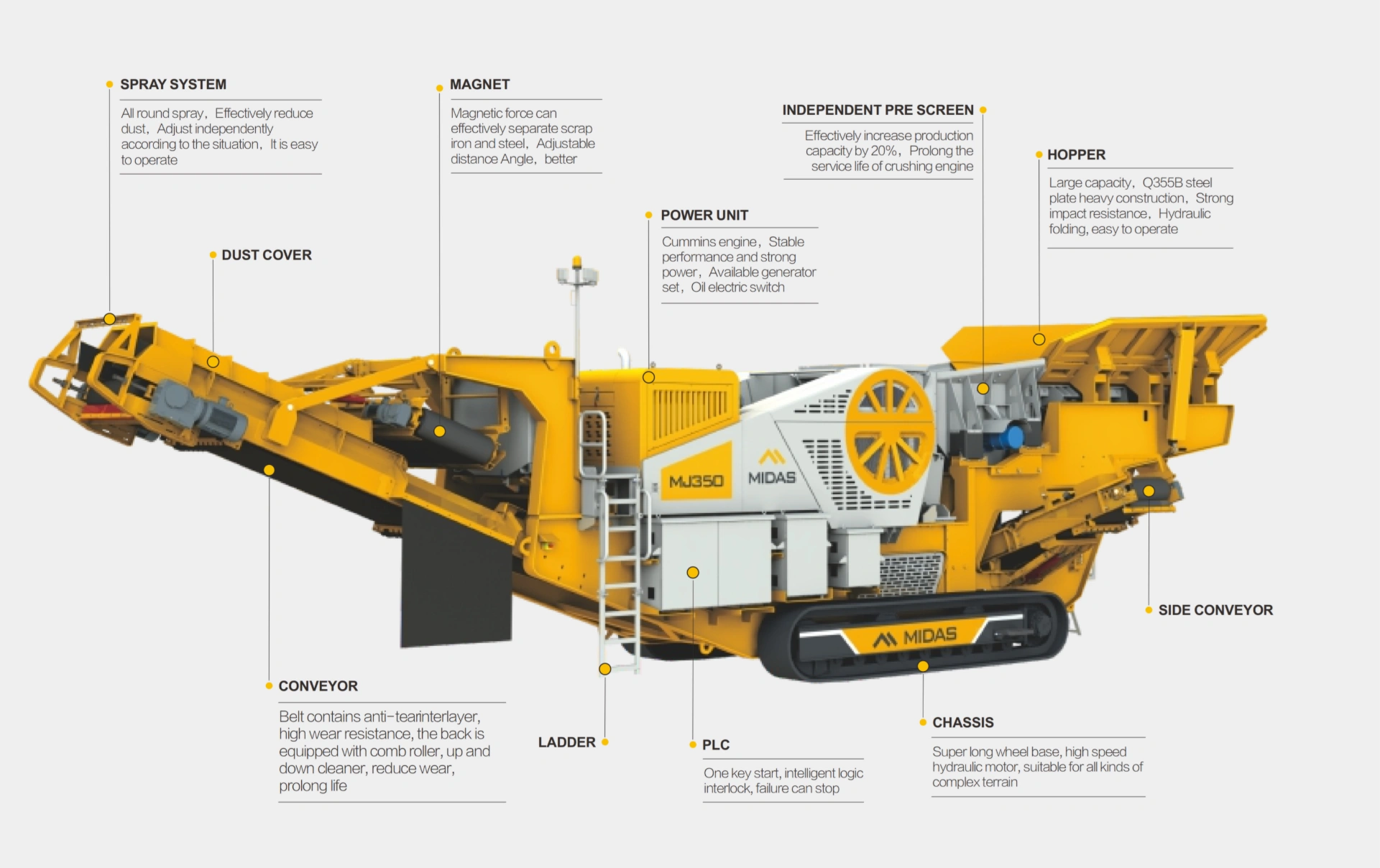

Tracked-Mobile-Jaw-Crusher01-07

Product Specifications

Whole plant model	Weight (T)	Power of complete machine (KW)	Crusher model	Crusher size	Optional
MI260RTE	68	322	PF1213	1200*1300	Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 400kw Power system
MI350RTE	74	352	PF1315	1300*1500	Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 500kw Power system
TX2IE	65	325.3	PF1213	1200*1300	Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 400kw Power system
TX3IE	88	376.7	PF1315	1300*1500	Independent prescreening system、Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 500kw Power system
