Crushing of Old Road Pavement

With High Throughput,A High Sand-making Ratio,Low Consumable Costs

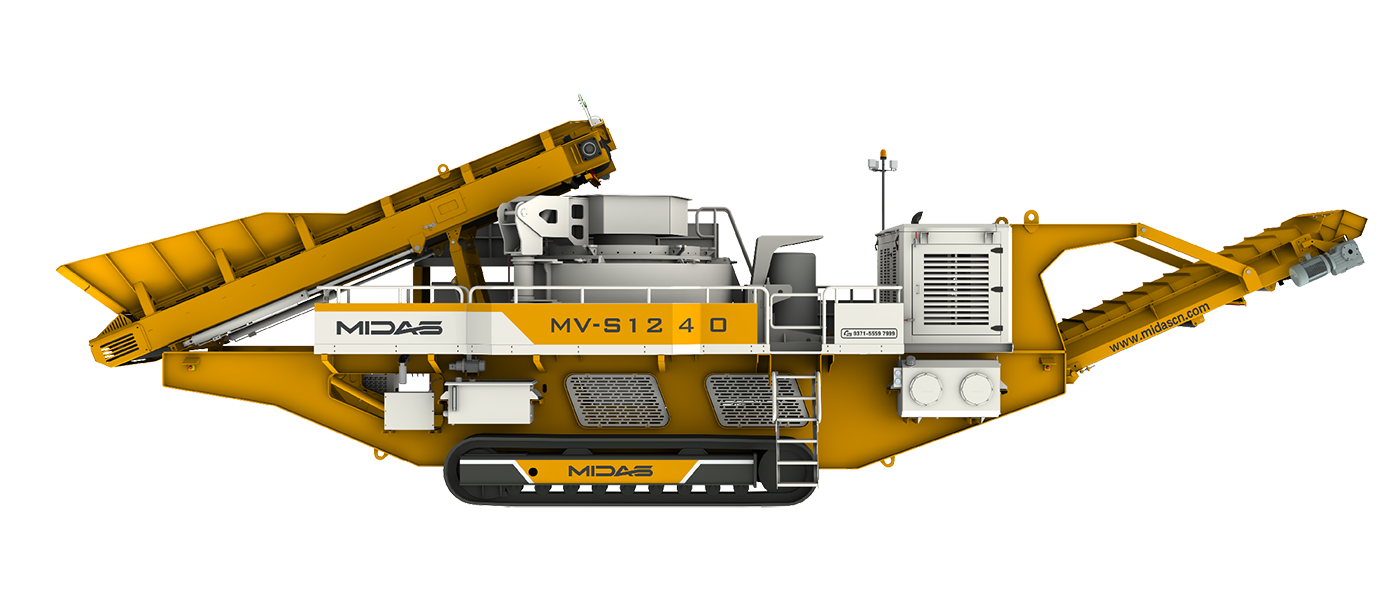

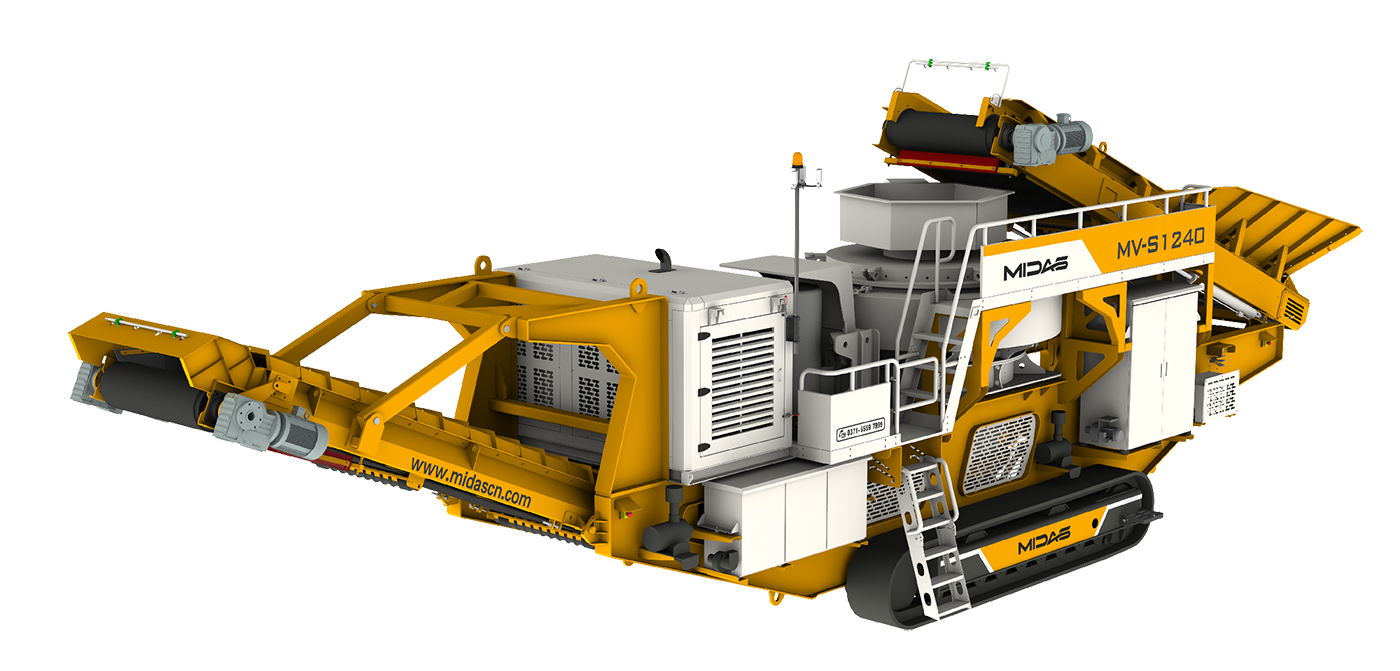

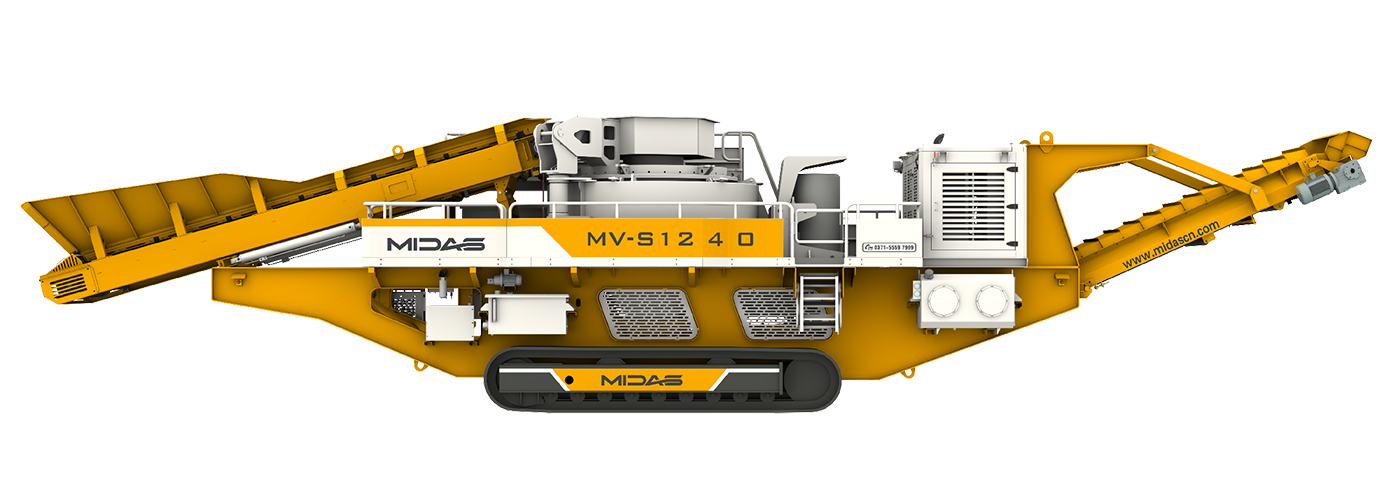

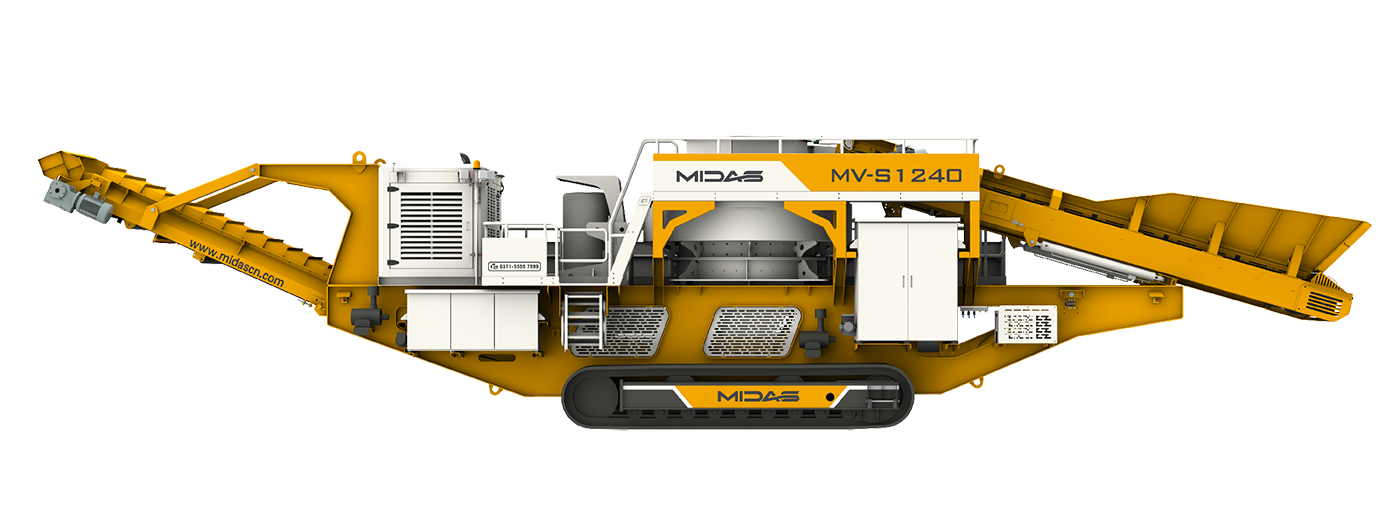

Midas MV-S series tracked mobile sand making plant, The main unit features a new impeller and a special sealing structure, resulting in low energy consumption and a long service life. It offers three optional drive modes: external electricity, electric and diesel integration, and full hydraulic drive. Suitable for sand and aggregate shaping or further sand making after secondary crushing. It is highly mobile, provides a large throughput, and delivers an excellent crushed particle shape.

Application Scenarios: material shaping, metallic and non-metallic ores, building materials, manufactured sand production, and metallurgical slag.

Processing capacity:

10-500 （t/h）

Total system power:

316.2-439 （KW）

Category:

Tracked Mobile Crushing Plant

Get a quote

Service hotline:

+8615250961721

Product Details

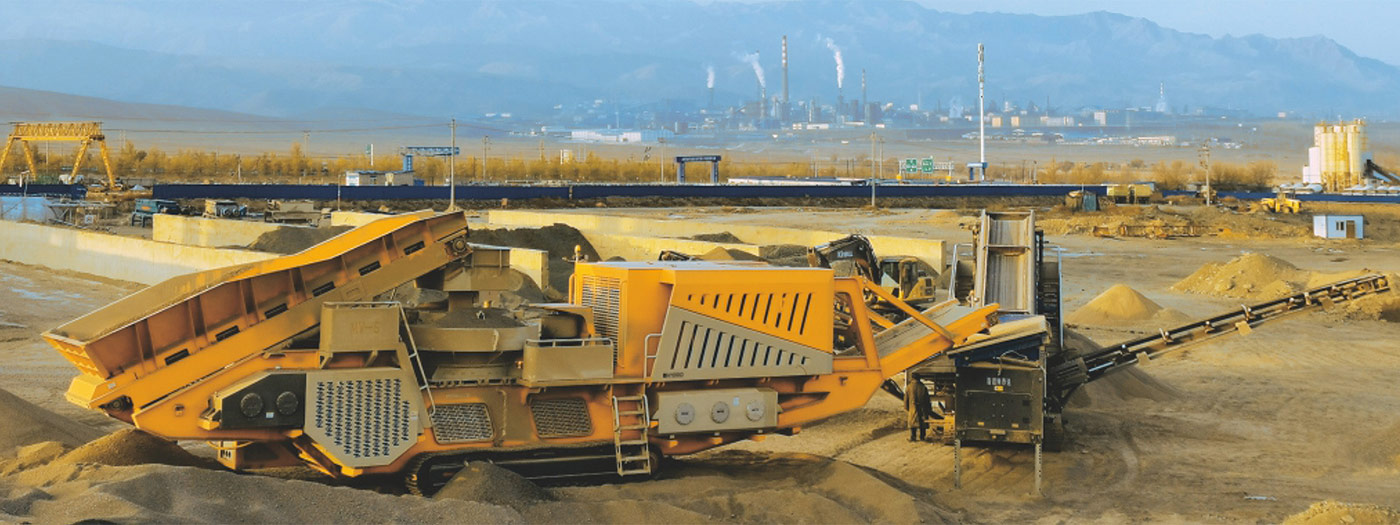

Crushing-of-Old-Road-Pavement-06

Crushing-of-Old-Road-Pavement-07

Product Specifications

Whole plant model	Weight (T)	Power of complete machine (KW)	Crusher model	Crusher size	Optional
MV-S900R	42	316.2	MBHS0925	950*230	Return system
MV-S900RTE	48	328.5	MBHS0925	950*230	Double-deck screening、De discharge conveyor、Oil and electricity dual-purpose system 500kw Generator set
MV-S1240	48	434	MBHS1222	1200*230
MV-S1240E	58	439	MBHS1222	1200*230	Oil and electricity dual-purpose system 600kw Generator set
