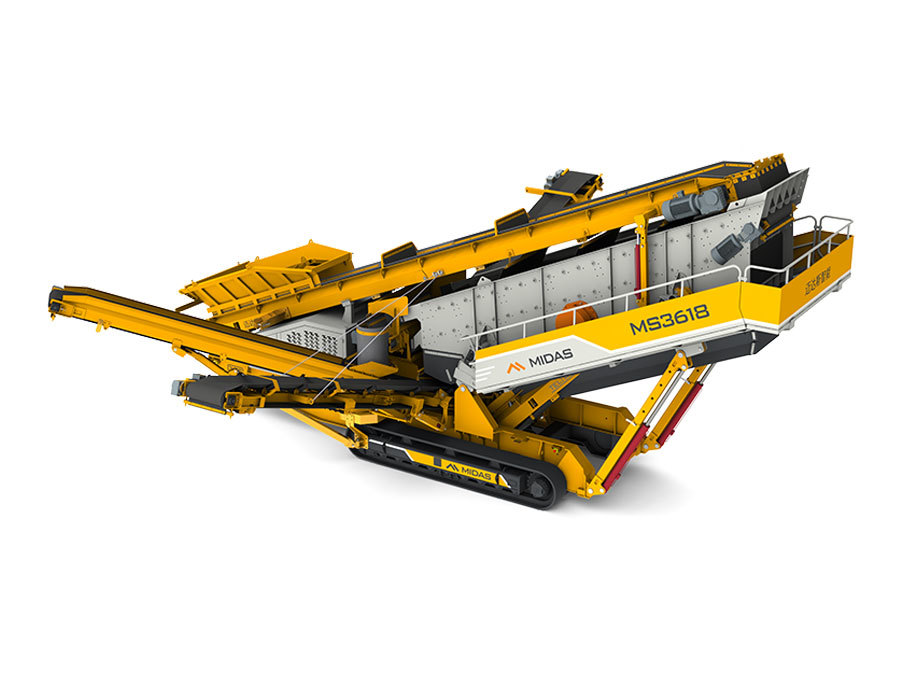

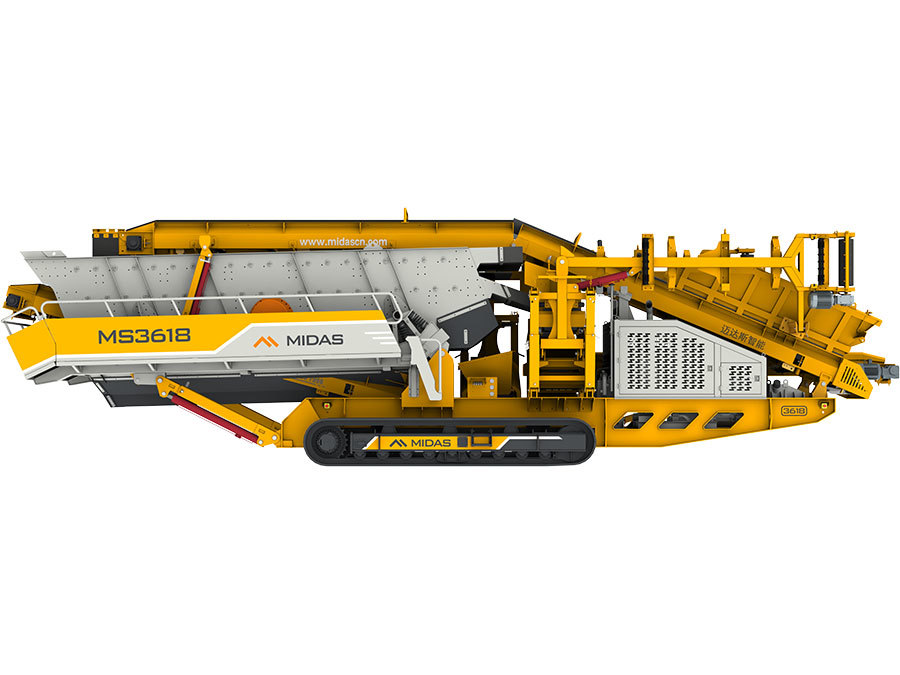

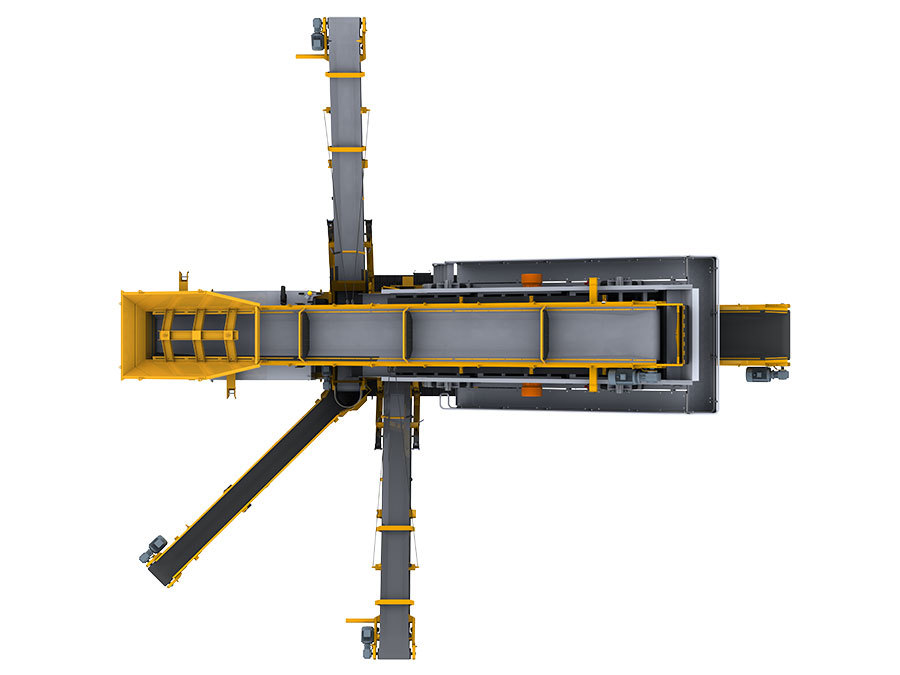

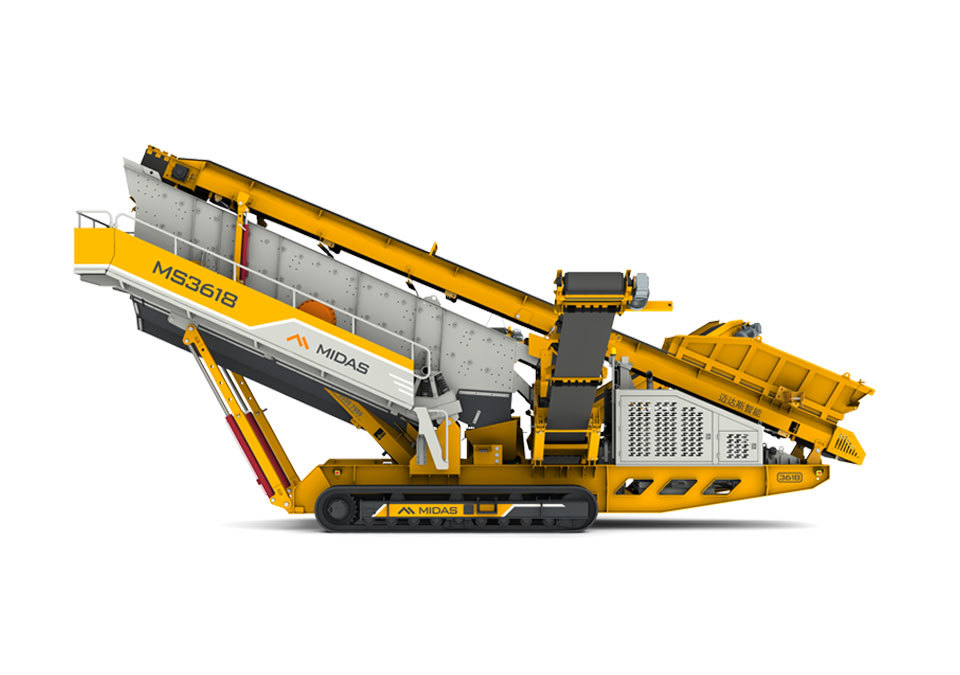

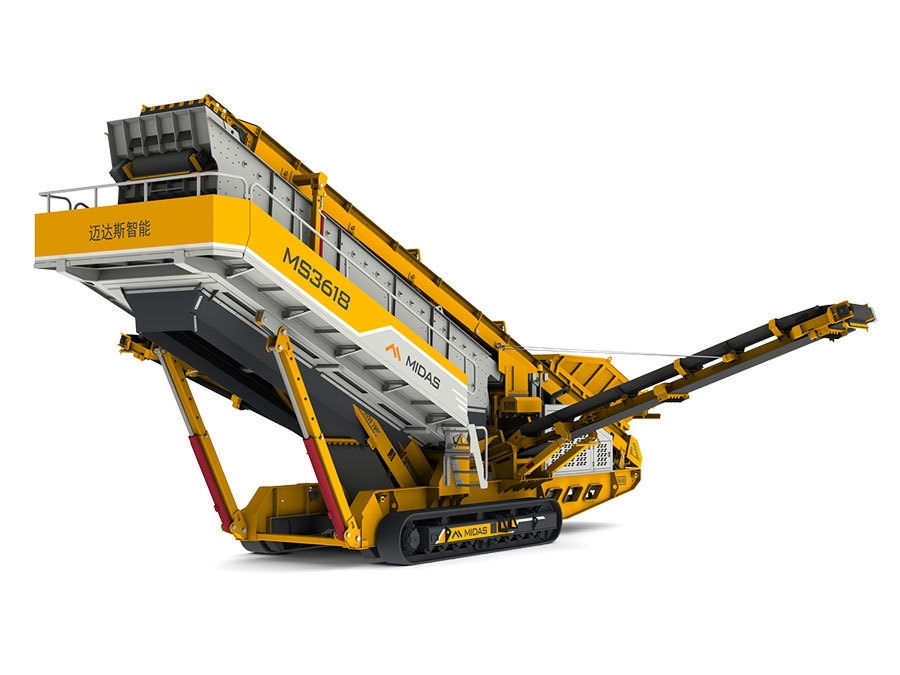

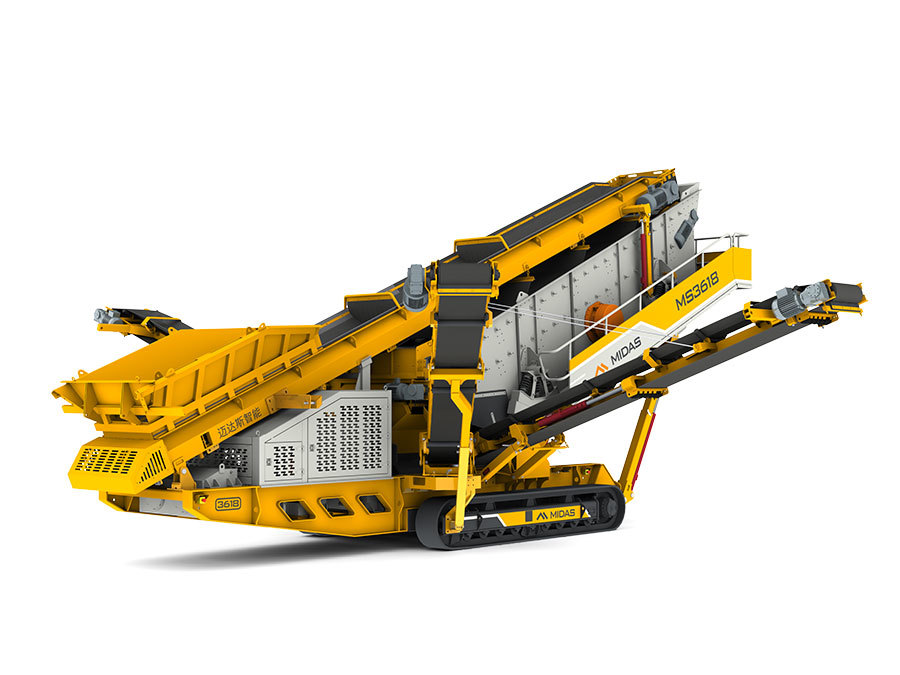

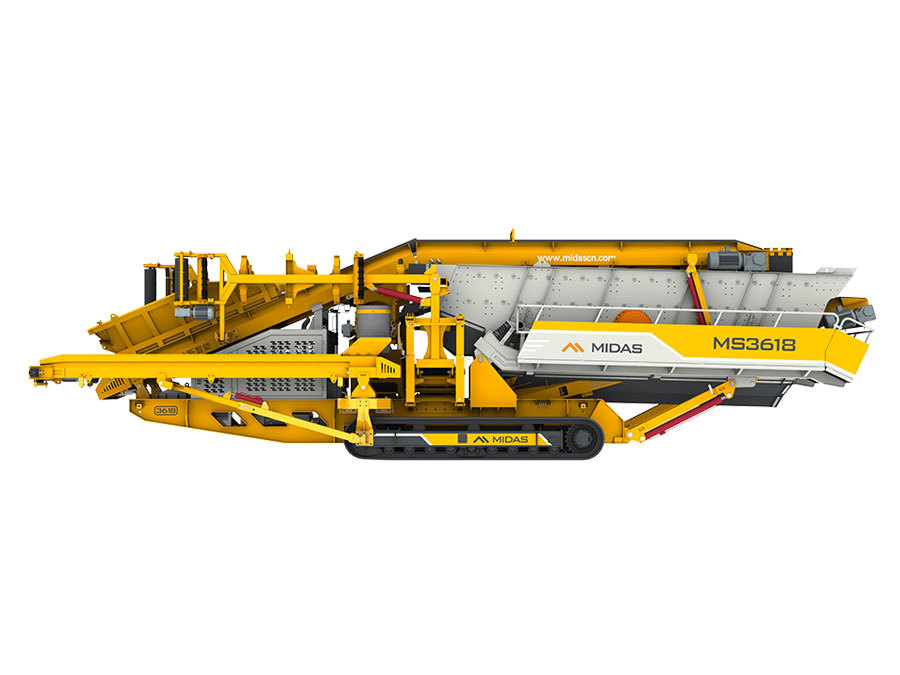

Ms Series Caterpillar Mobile Inclined Screening Plant

Two-stage Screen Body, Precise Screening, Hydraulically Assisted

Midas MS series tracked mobile screening plant is equipped with vehicle-mounted automatic folding belt conveyor, which has a large handling capacity and can be used for fine screening of materials. It is well-suited for screening finished products from various crushed aggregates and construction waste. The entire unit is highly mobile, durable, and exceptionally reliable.

Its application scenarios include the screening and processing of coarse materials, and the grading of sand/pebble aggregates, construction waste, metallurgical/coal materials, and building materials

Processing capacity:

200-500 （t/h）

Total system power:

68.5-108 （KW）

Category:

Tracked Mobile Screening Plant

Get a quote

Service hotline:

+8615250961721

Product Details

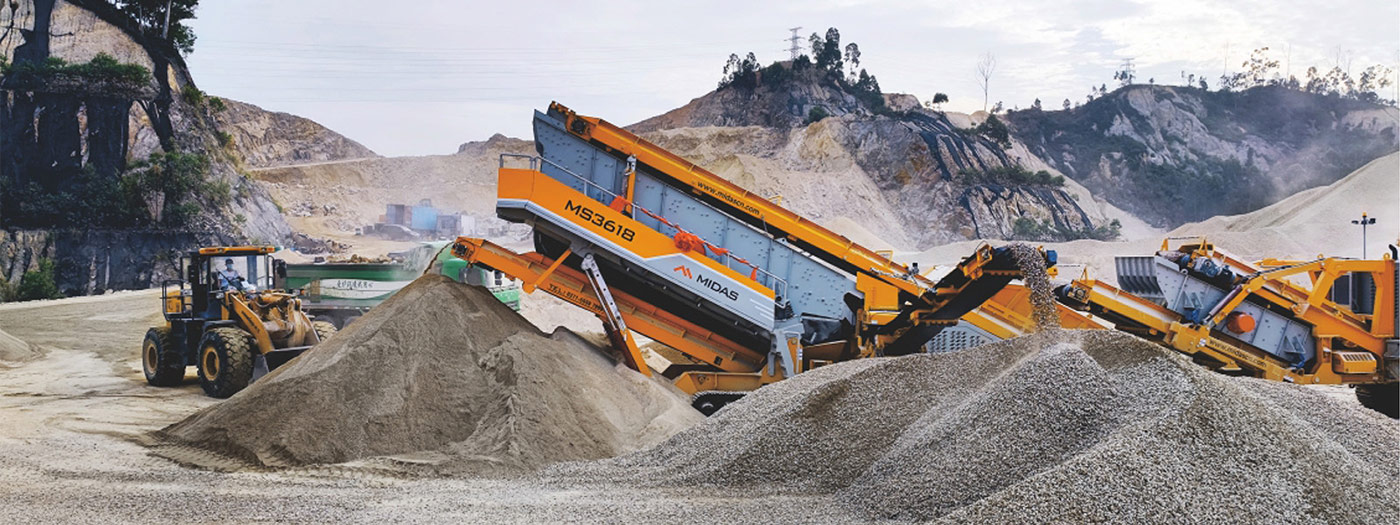

Ms-Series-Caterpillar-Mobile-Inclined-Screening-Plant09

Midas MDS series tracked mobile screening plant is equipped with vehicle-mounted automatic folding belt conveyor, which has a large handling capacity and can be used for fine screening of materials. It is well-suited for screening finished products from various crushed aggregates and construction waste. The entire unit is highly mobile, durable, and exceptionally reliable.

Product Specifications

Whole plant model	Weight (T)	Power of complete machine (KW)	Crusher model	Crusher size	Optional
MS3618	34	68.5	M3618	6000*1800
MS3618E	35	68.5	M3618	6000*1800	Oil and electricity dual-purpose system 120kw Power system
MSF3618	39	83.5	M3618	6000*1800	Feeding system
MSF3618E	40	83.5	M3618	6000*1800	Feeding system、Oil and electricity dual-purpose system 150kw Power system
MS3720	37	74.5	M3720	7000*2000
MS3720E	38	74.5	M3720	7000*2000	Oil and electricity dual-purpose system 120kw Power system
MS5618	49	108	M5618	6000*1800
MS5618E	50	108	M5618	6000*1800	Oil and electricity dual-purpose system 150kw Power system
