Tracked Mobile Impact Crushing and screening plant MI260RTE

Integrated Crushing and Screening,Dual-Power (Diesel and Electric),PLC One-Touch Smart Start

The MIDAS MI-RTE Series Impact Crushing and screening plant performs both crushing and screening functions on a single tracked vehicle. It has been upgraded to a dual-power system (diesel and electric) and is equipped with a PLC one-touch smart start. The machine can be used for both primary and secondary crushing, and is suitable for processing medium-soft rock and construction waste. The entire unit has a wide range of applications, high intelligence, and is simple to operate.

Application scenarios: The plant is used in the primary and secondary crushing stages of medium-soft materials, as well as for mining/ore/coal excavation, concrete mixing plants, dry-mix mortar/power plant desulfurization, quartz sand production, construction waste recycling, and road and bridge construction.

Processing capacity:

160-350 （t/h）

Total system power:

281.7 （KW）

Category:

Tracked Mobile Crushing And Screening Plant

Get a quote

Service hotline:

+8615250961721

Product Details

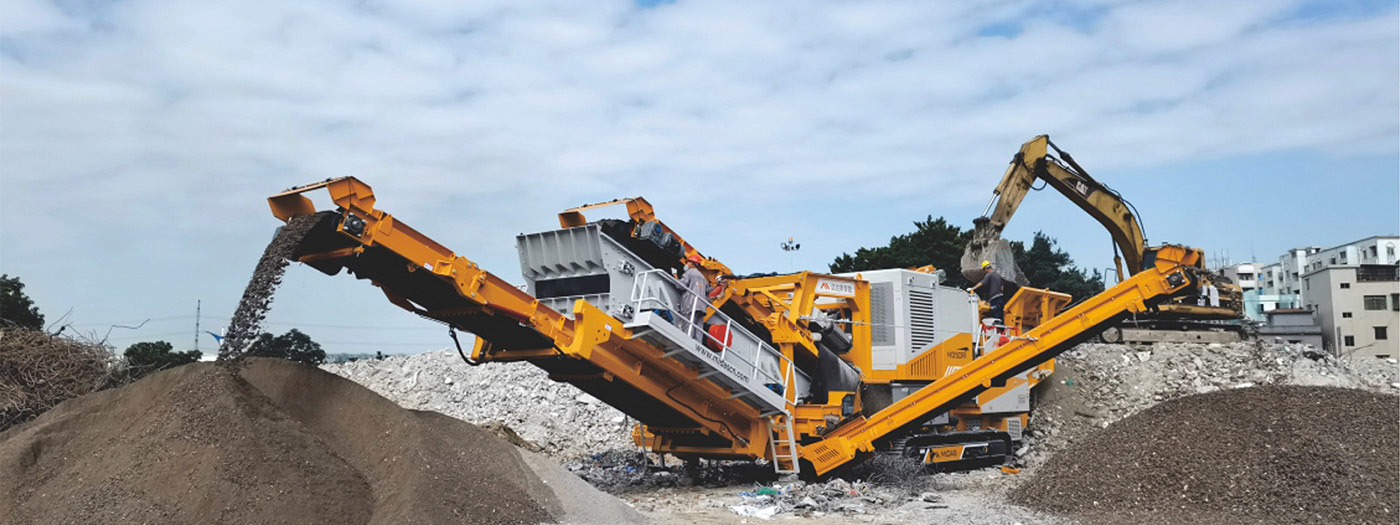

Tracked-Mobile-Impact-Crushing-and-screening-plant-MI260RTE06

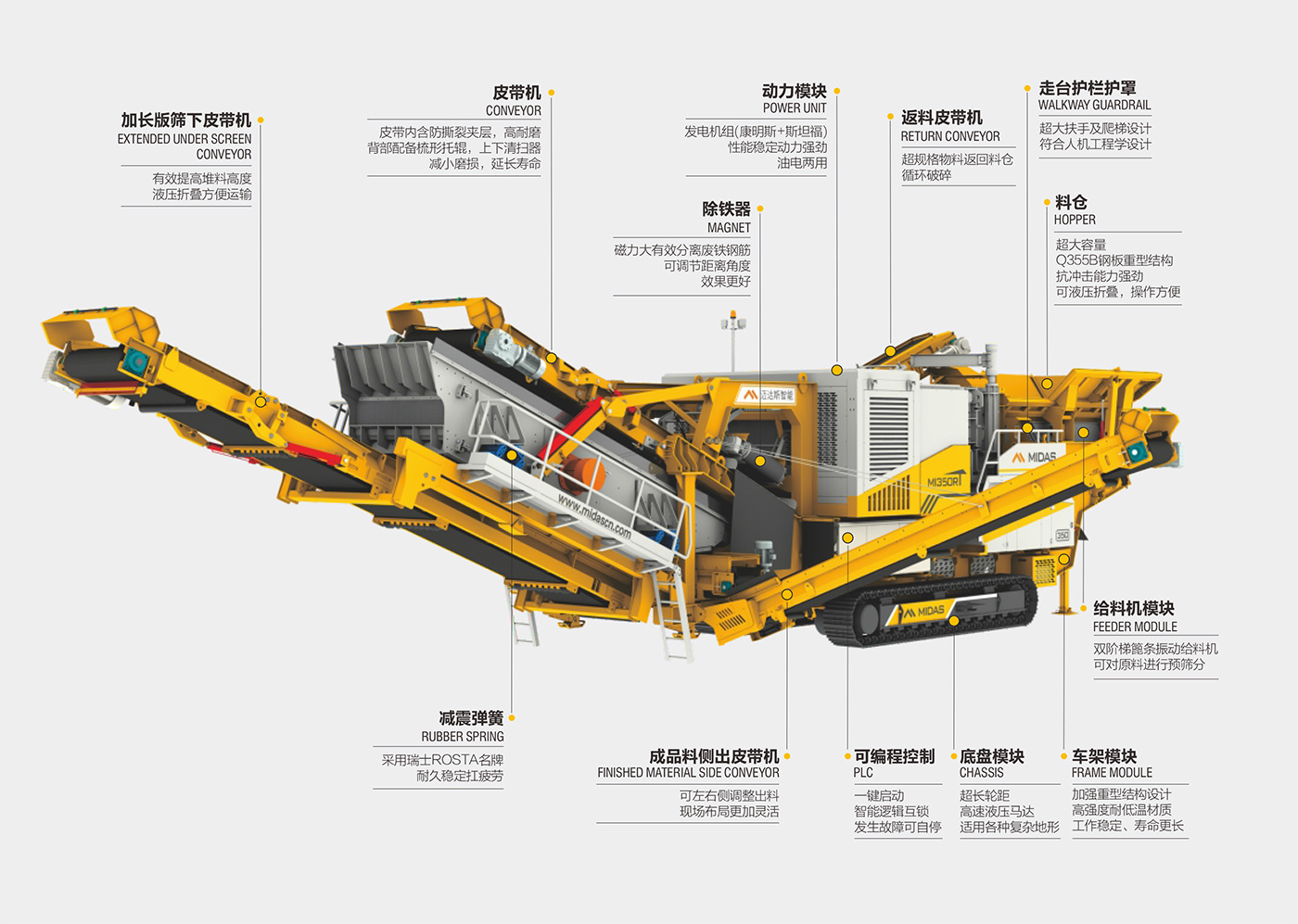

Tracked-Mobile-Impact-Crushing-and-screening-plant-MI260RTE07

Product Specifications

Whole plant model	Weight (T)	Power of complete machine (KW)	Crusher model	Crusher size	Optional
MI260RTE	68	322	PF1213	1200*1300	Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 400kw Power system
MI350RTE	74	352	PF1315	1300*1500	Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 500kw Power system
TX2IE	65	325.3	PF1213	1200*1300	Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 400kw Power system
TX3IE	88	376.7	PF1315	1300*1500	Independent prescreening system、Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 500kw Power system
