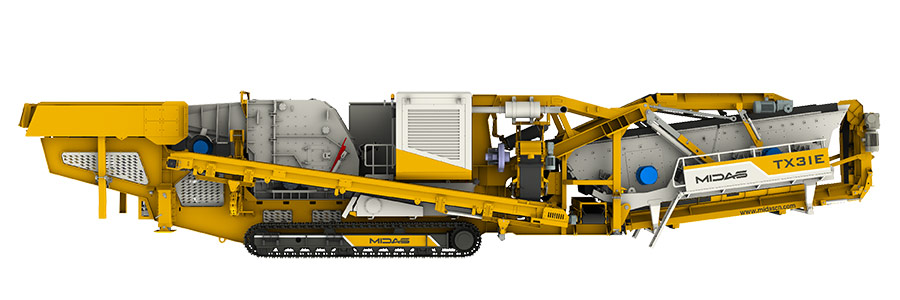

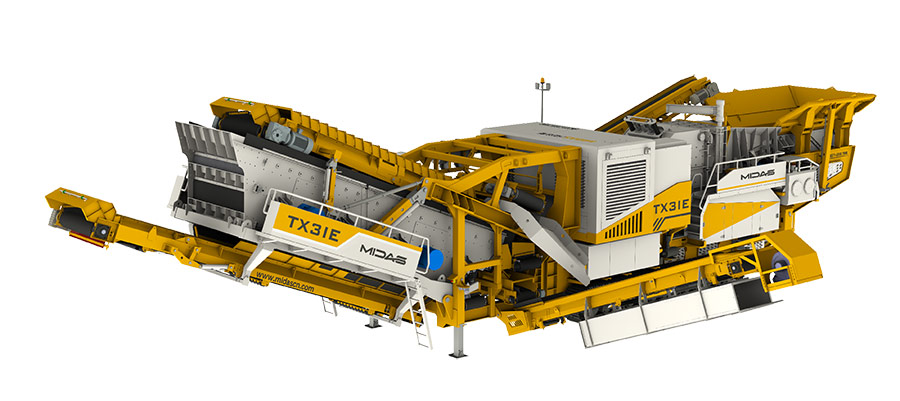

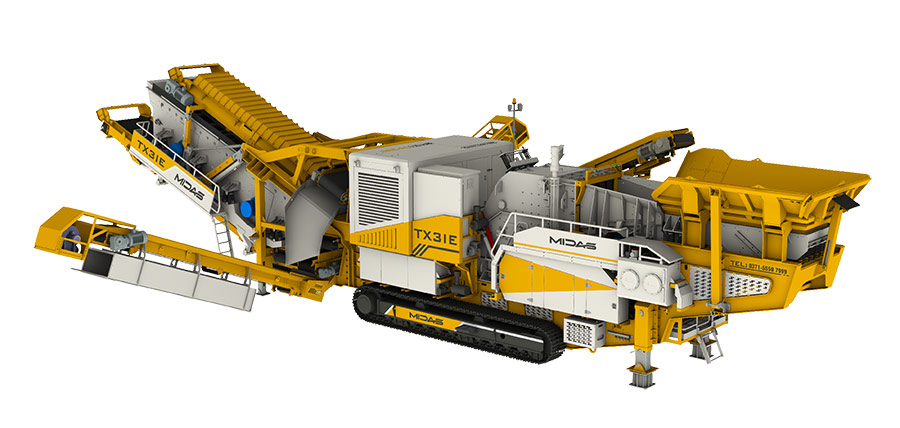

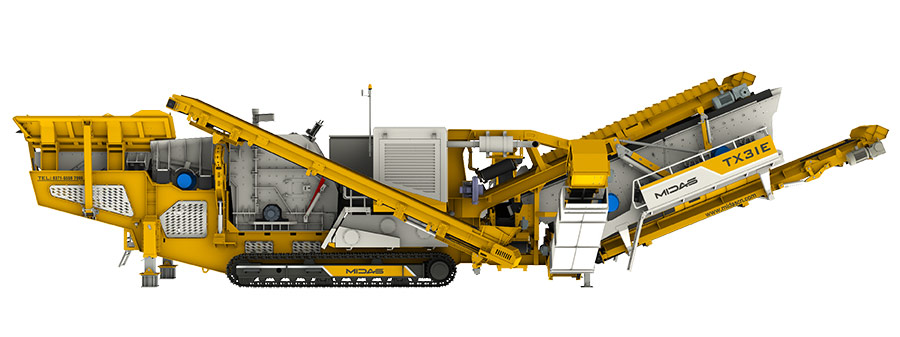

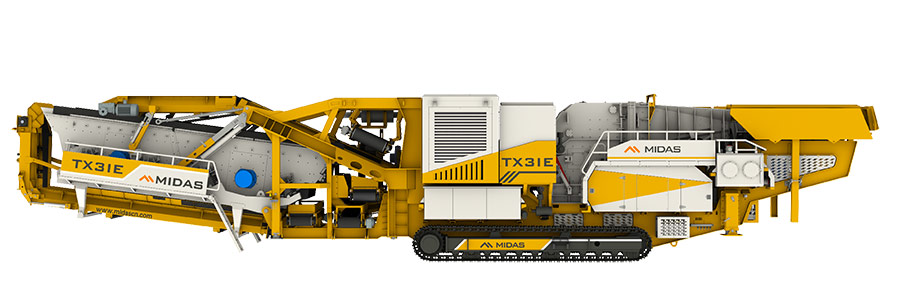

Impact crushing and screening plant TX3IE

Integrated Crushing and Screening,Dual-Power (Diesel and Electric),PLC One-Touch Smart Start

The TX3IE is the high-efficiency king in the field of track-mounted mobile crushing and screening for medium-hard rock. It integrates three core units—a vibrating feeder, a cone crusher, and a three-deck dual-stage screen—to achieve the same crushing and screening performance as a separate production line. Furthermore, it is equipped with an independent pre-screening device to further enhance crushing efficiency. It has also been upgraded to a hybrid (diesel-electric) power system, allowing for a one-touch start to begin production as soon as it arrives on site

Application scenarios: secondary and tertiary crushing and screening of medium and high hardness materials, secondary crushing and screening of hard rocks (granite/basalt/cobblestone/diabase, etc.).

Processing capacity:

200-400 （t/h）

Total system power:

376.7 （KW）

Category:

Tracked Mobile Crushing And Screening Plant

Get a quote

Service hotline:

+8615250961721

Product Details

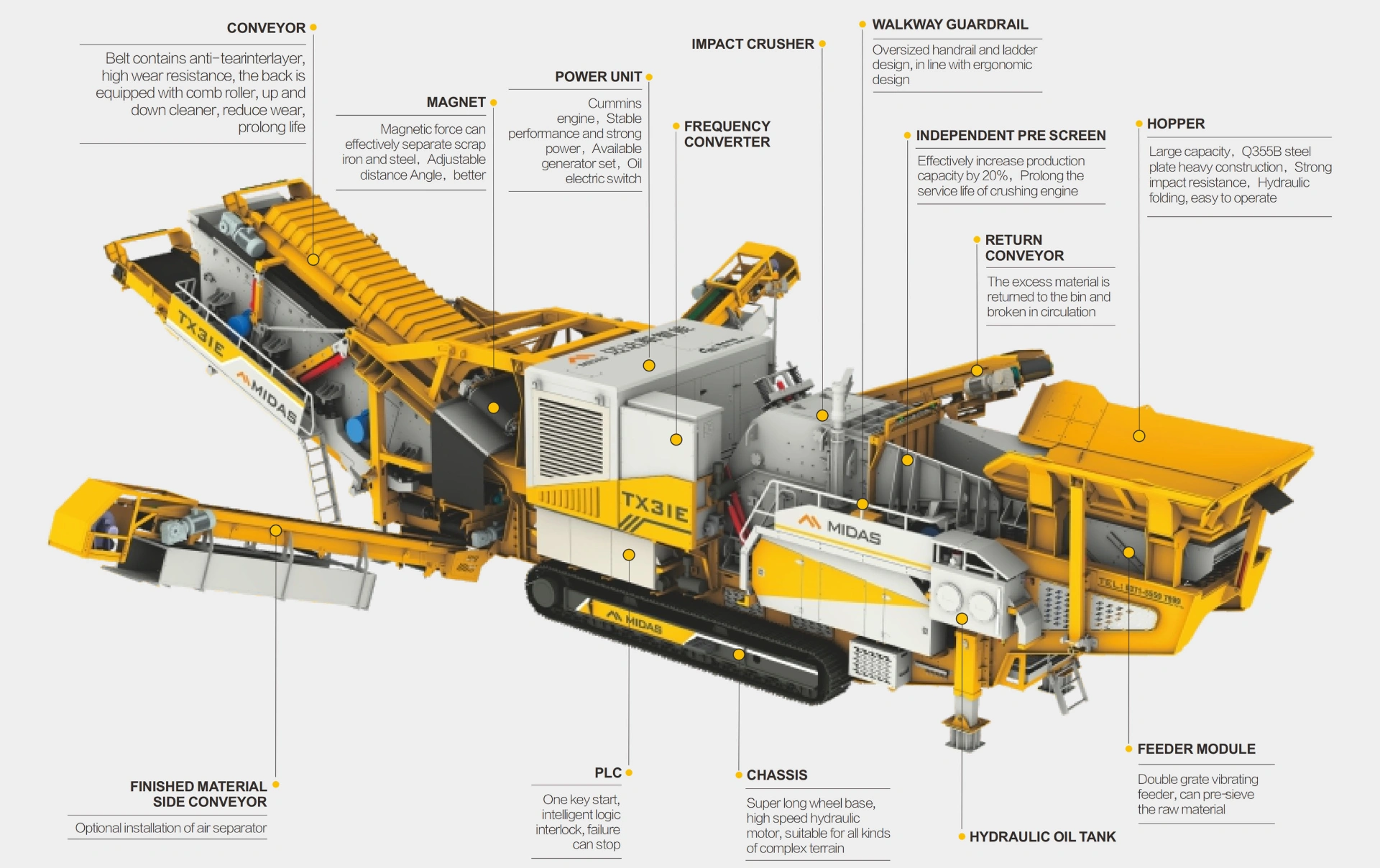

Impact-crushing-and-screening-plant-TX3IE07

Product Specifications

Whole plant model	Weight (T)	Power of complete machine (KW)	Crusher model	Crusher size	Optional
MI260RTE	68	322	PF1213	1200*1300	Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 400kw Power system
MI350RTE	74	352	PF1315	1300*1500	Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 500kw Power system
TX2IE	65	325.3	PF1213	1200*1300	Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 400kw Power system
TX3IE	88	376.7	PF1315	1300*1500	Independent prescreening system、Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 500kw Power system
