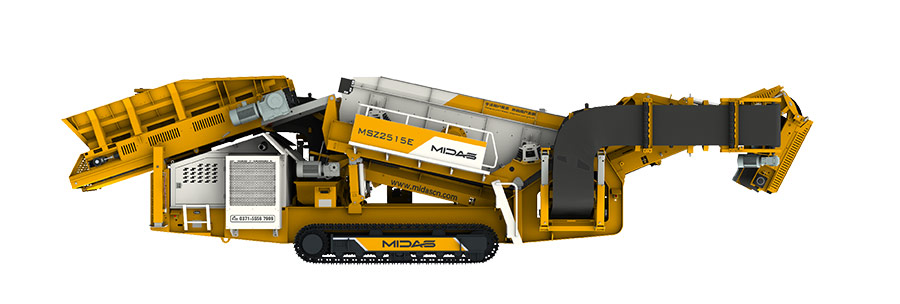

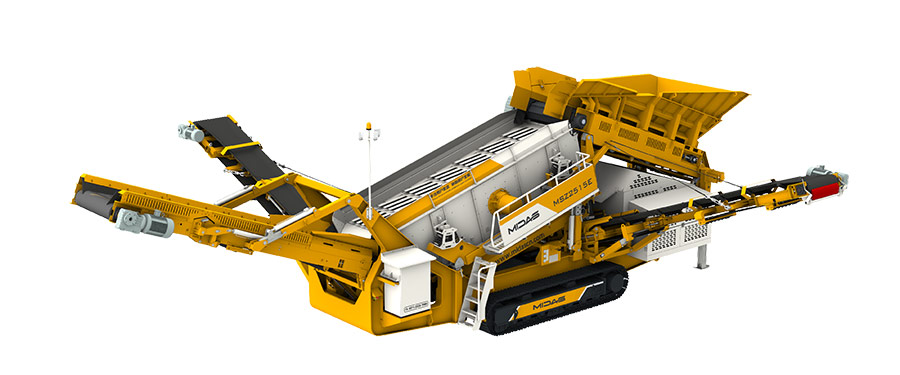

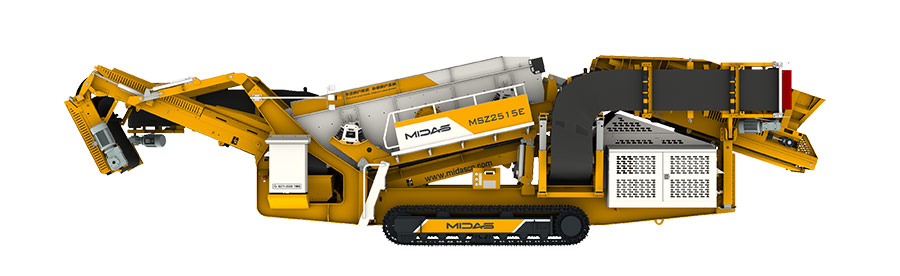

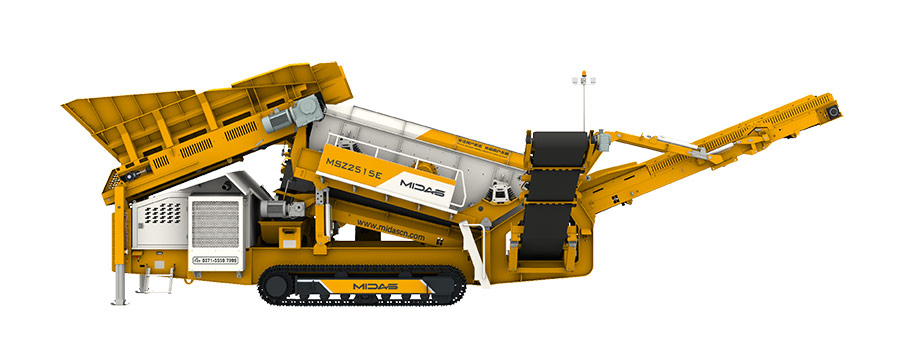

Tracked Mobile Heavy-duty Screening Plant

Soil-rock Separation,Heavy-duty Frame,Stable and Durable

The MIDAS MSZ Series Tracked Mobile Heavy-duty Screening Plant is equipped with a large-torque apron feeder, a first-deck heavy-duty grizzly screen, and a 1.2-meter ultra-wide patterned conveyor belt. This configuration effectively handles the screening and transfer of oversized materials. Designed for primary screening, it is particularly suitable for specific applications like soil and rock separation and the preliminary screening of construction waste, achieving exceptional results.

Application scenarios: preliminary screening of soil-rock separation, mining, construction waste screening, coal gangue screening, and sand aggregate screening.

Processing capacity:

280-680 （t/h）

Total system power:

66-101 （KW）

Category:

Tracked Mobile Screening Plant

Get a quote

Service hotline:

+8615250961721

Product Details

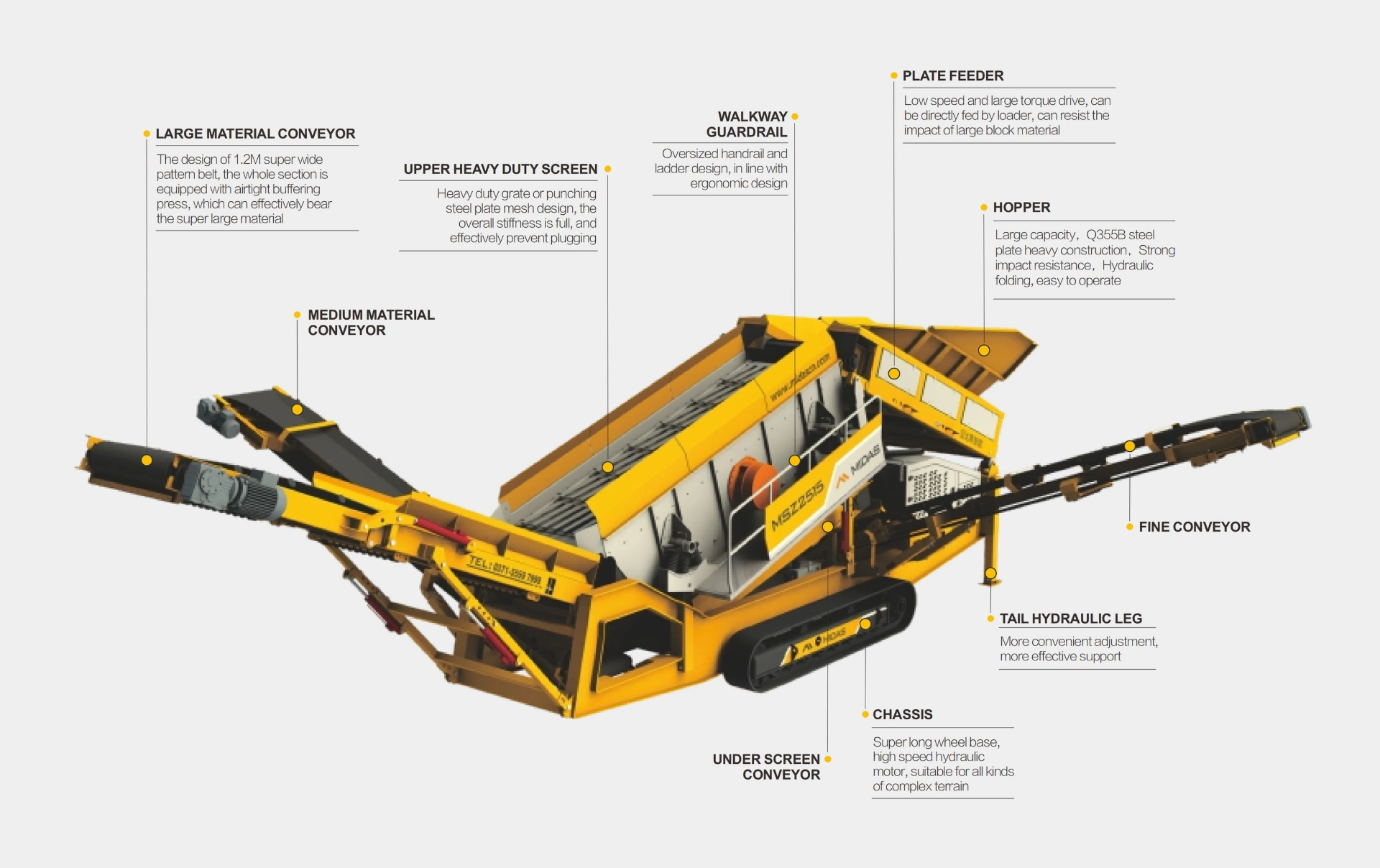

Tracked-Mobile-Heavy-duty-Screening-Plant06

Product Specifications

Whole plant model	Weight (T)	Power of complete machine (KW)	Crusher model	Crusher size	Optional
MSZ2515	34	66	SZ2515	5000*1500
MSZ2515E	35	66	SZ2515	5000*1500	Oil and electricity dual-purpose system 120kw Generator set
MSZ2618	40	77.5	SZ2618	6000*1800
MSZ2618E	42	77.5	SZ2618	6000*1800	Oil and electricity dual-purpose system 150kw Generator set
MSZ3618	46	101	SZ3618	6000*1800
MSZ3618E	48	101	SZ3618	6000*1800	Oil and electricity dual-purpose system 150kw Generator set
