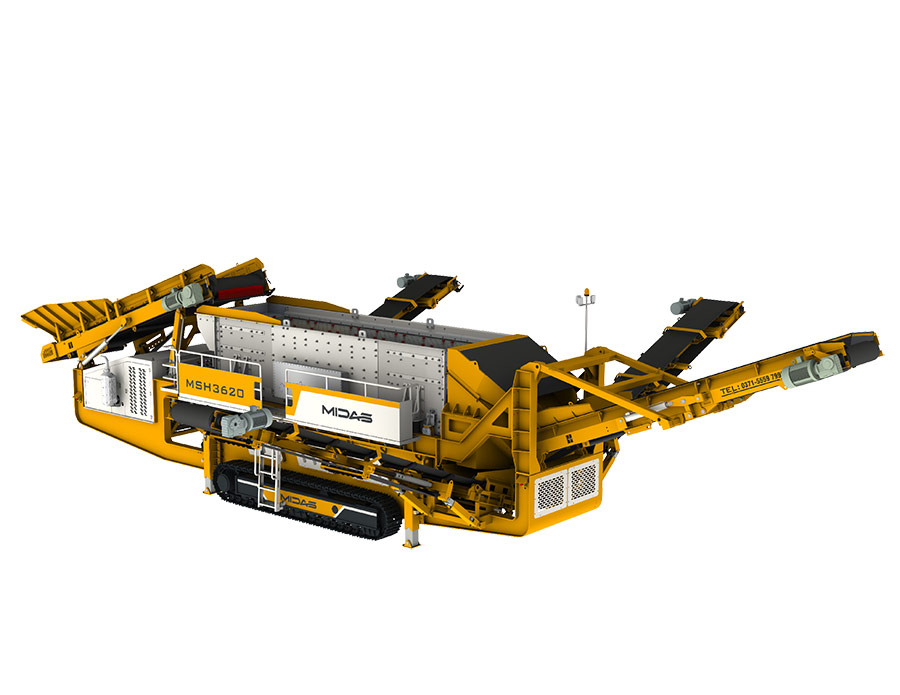

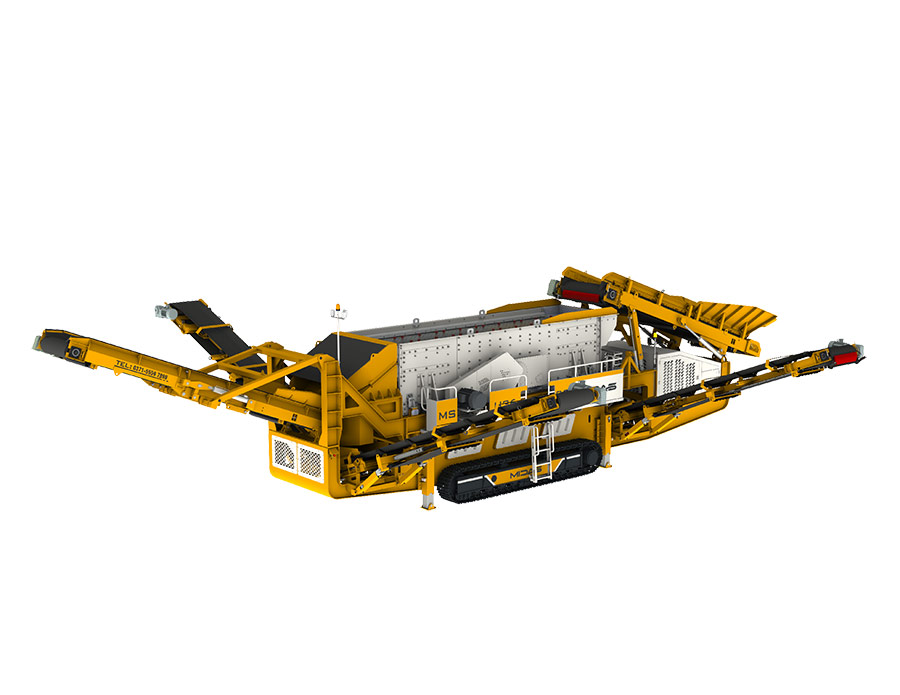

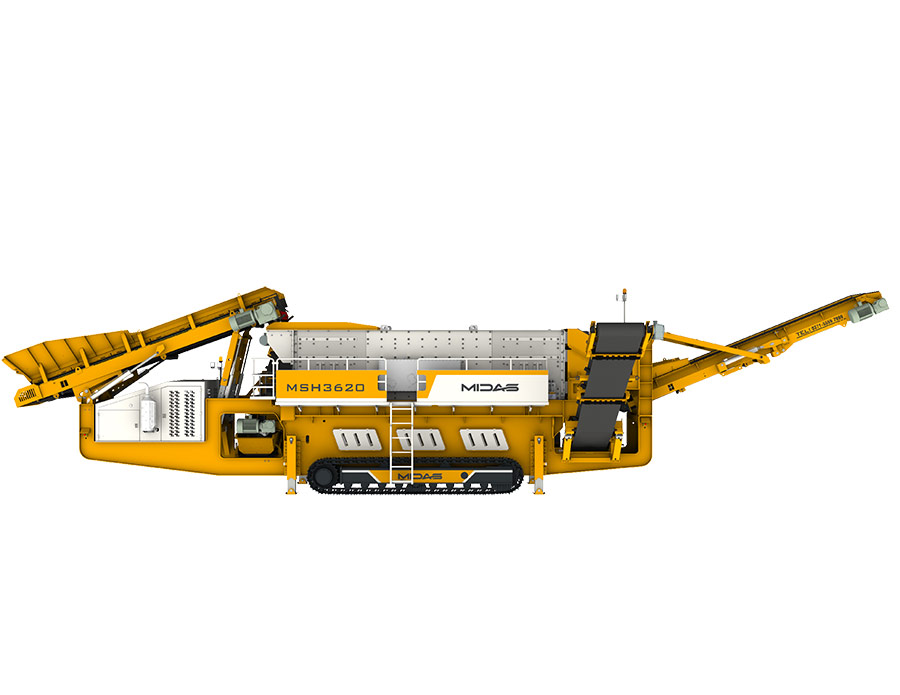

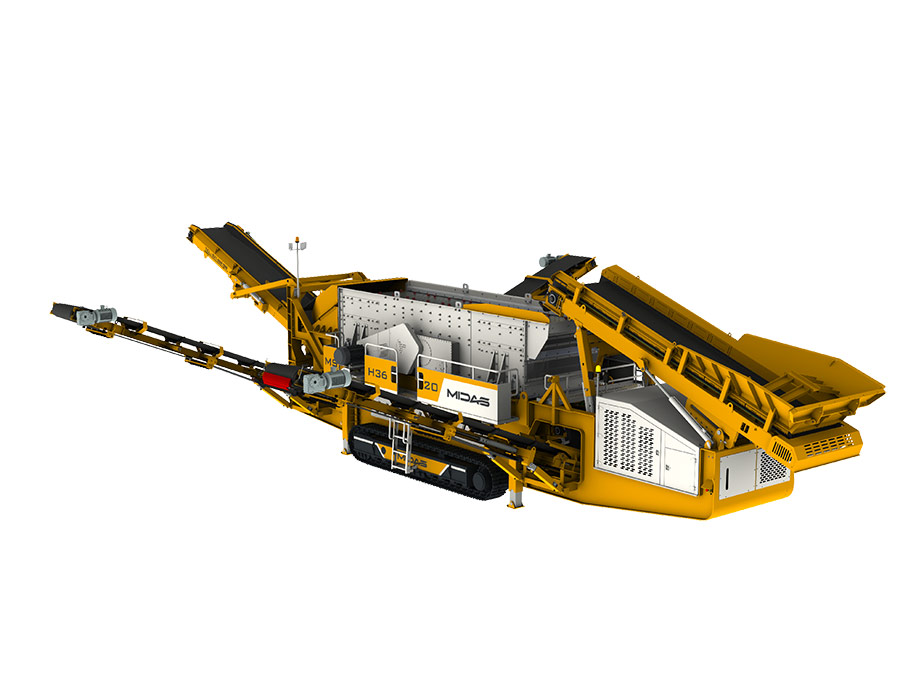

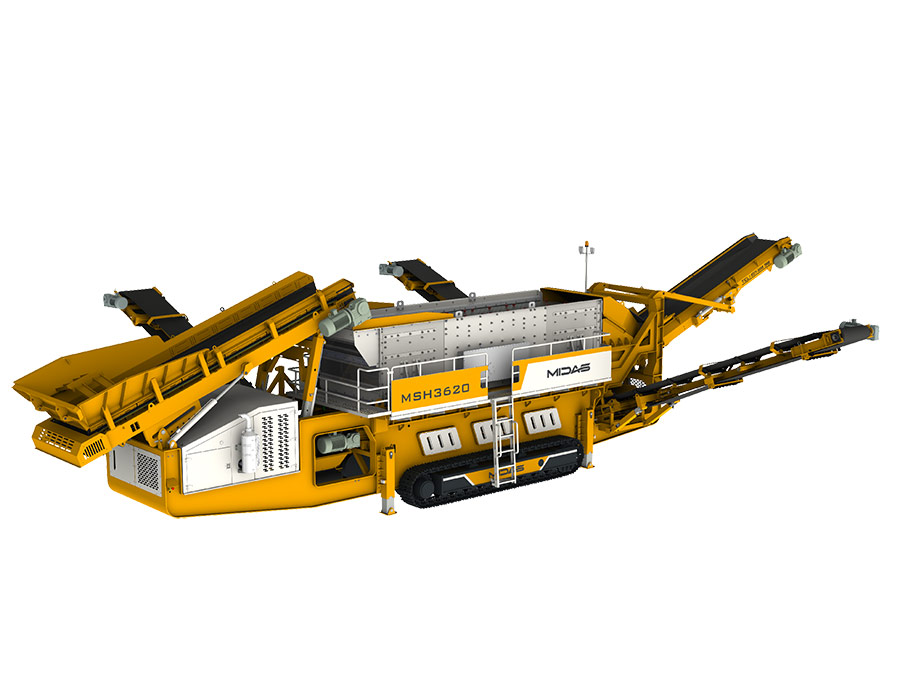

Tracked Mobile Horizontal Screening Plant

Large Capacity,High Grade Screening,Screening of Sticky Materials

The MIDAS MSH Series Tracked Mobile Horizontal Screening Plant utilizes a three-axis driven elliptical vibration trajectory, combining the advantages of both circular and linear vibrating screens. With its adjustable amplitude and synchronized excitation, along with a large-torque decelerating feeder to ensure uniform feeding, it performs exceptionally well on highly viscous and difficult-to-screen materials. This makes it widely applicable in fields that require high screening efficiency and accuracy. The entire machine offers a large throughput, strong stability, a wide variety of materials, and high-grading accuracy.

Application scenarios: This plant is used for high-efficiency and high-precision screening of medium and fine materials, the grading of aggregates for high-standard projects like highways, railways, and bridges, and the large-capacity screening of finished products from weathered Gobi stone, which often has a certain viscosity.

Processing capacity:

300-800 （t/h）

Total system power:

93 （KW）

Category:

Tracked Mobile Screening Plant

Get a quote

Service hotline:

+8615250961721

Product Details

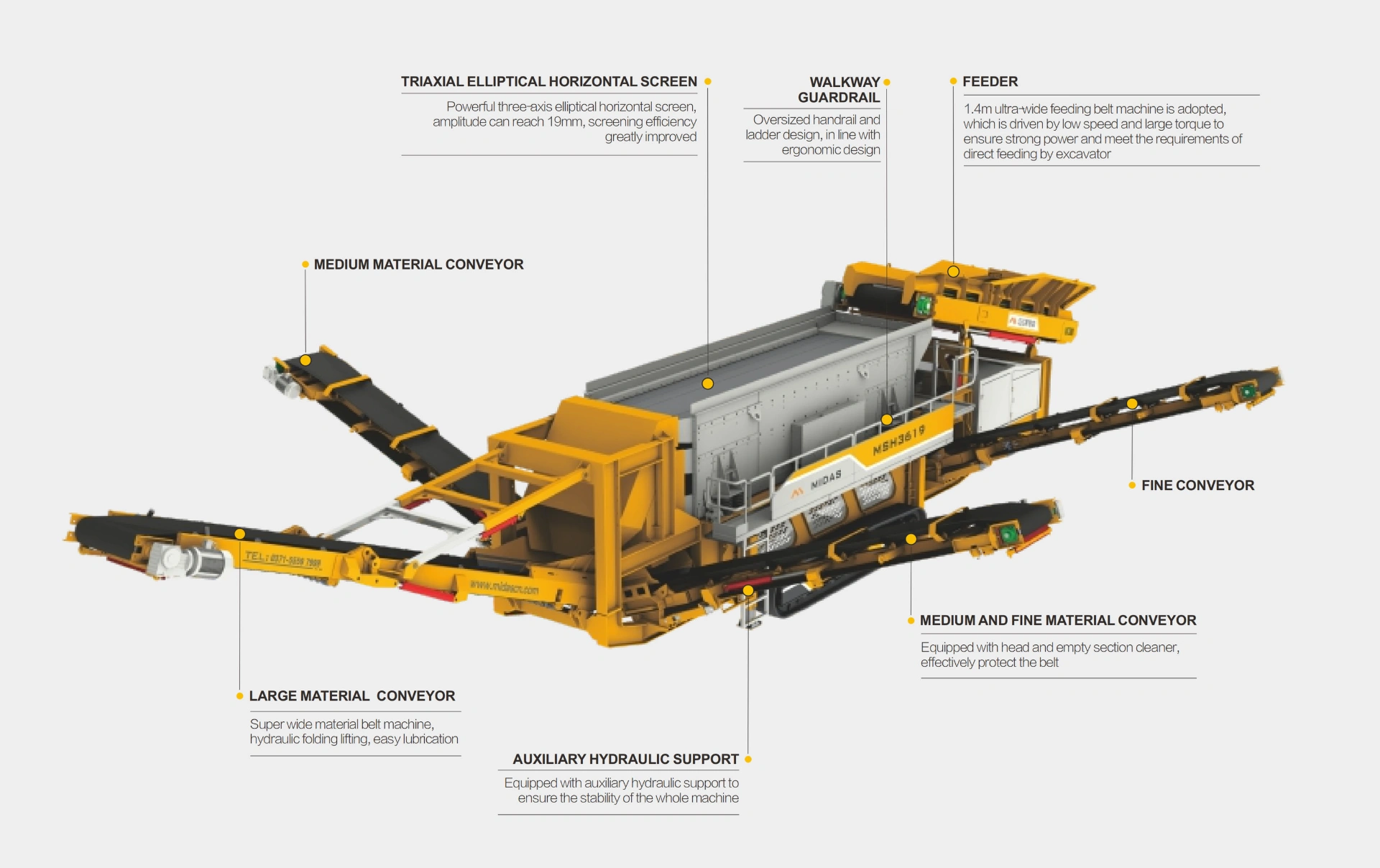

Tracked-Mobile-Horizontal-Screening-Plant07

Product Specifications

Whole plant model	Weight (T)	Power of complete machine (KW)	Crusher model	Crusher size	Optional
MSH3620	43	93	HS3620	6100*1930
MSH3620E	45	93	HS3620	6100*1930	Oil and electricity dual-purpose system 150kw Power system
